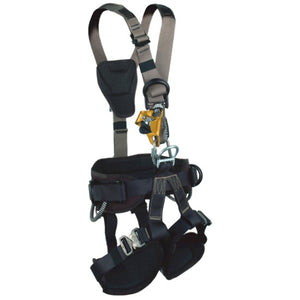

Yates 387P ROPE ACCESS PROFESSIONAL HARNESS387P - M
A state-of-the-art version of out popular Basic Rope Access harness with the addition of Cobra quick connect leg buckles. New lightweight aluminum D rings are used on side positioning, chest, and dorsal fall protection connections. Wide anatomical waist pad for increased comfort and added back support. Modular work/tool pouch system is included. New Cobra ANSI Z359.1 certified aluminum quick connect leg buckles are used for ease of donning. NEW Leg pad configuration is contoured and sewn in place to offer a super comfortable fit for those long hanging jobs. Attachment points at waist, hips, chest, back (lumbar) and back (dorsal). Chest harness specifically designed to incorporate a chest ascender (not included) for rope access work and the shoulder straps are specially tailored to reduce chafing of the neck. Weight 5lb. 6oz.
|Harness Size||Waist Size||Height||D ring to D ring|
|S||28 - 33 in||5'0" - 5'9"||19.0 in|
|M||32 - 36||5'5" - 6'4"||22.0 in|
|L||35 - 40||5'5" - 6'4"||26.0 in|
|XL||39 - 46||5'5" - 7'0"||29.0 in|
• Sizes S, M, L, XL, (SX Special Order, 3" smaller than S)
• Removable contoured shoulder pads included.
• UL Classified to meet NFPA 2500-2022 edition standards
• UL Classified ANSI/OSHA Z359.11-2021 and CAN/CSA Z259.10-18 harness standards
SPECIAL NOTICE ON STERNAL ATTACHMENT OF LANYARD FOR FALL ARREST.
ANSI Z359.11-2014 Sternal Attachment
The sternal attachment may be located as shown in Figure 4 and used as an alternative fall arrest attachment in applications where the dorsal attachment is determined to be inappropriate by a competent person and where there is no chance to fall in a direction other than feet first.
E3.2.2 See Figure 2(a) & 4. The sternal attachment element should be used only when the likely fall distance is not greater than 2 ft.
18.104.22.168 When loaded at the sternal attachment to arrest a fall, the design of the FBH (full body harness) shall direct load through the shoulder straps supporting the user and around the thighs.
|Origin||Made in USA|
|Size||S, M, L, XL|
|Weight||5 lb. 6 oz.|
