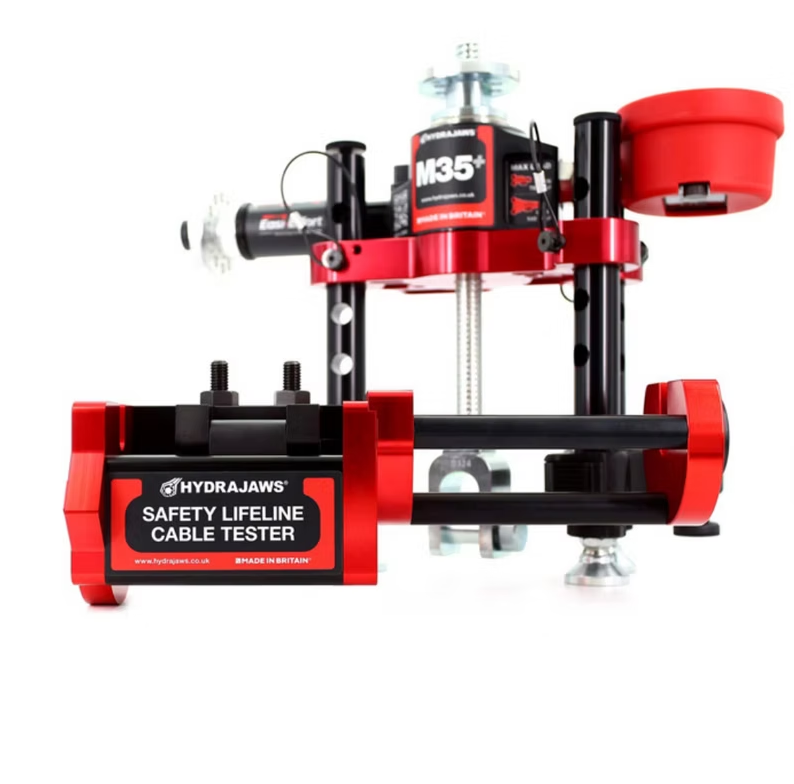

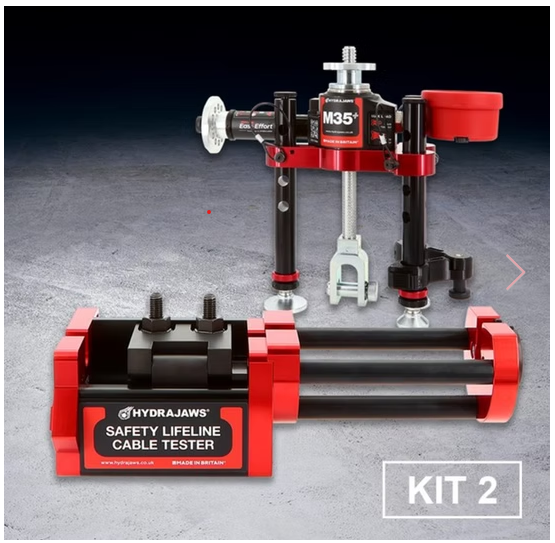

Hydrajaws Safety Lifeline Cable Tester KIT 2
The upgraded Hydrajaws Safety Lifeline Cable Tester KIT 2 is a complete kit enabling engineers to validate the installation of anchors, and eyebolts up to a maximum tensile load of 35kN (7868lbf) and swaged components on newly installed or existing engineered lifeline systems to ensure compliance with BS 7883 up to a maximum tensile load of 20kN (4496lbf).
The upgraded 2024 edition of the Hydrajaws Safety Lifeline Cable Tester KIT 2 — comprehensive kit features a redesigned, lightweight, and compact form factor that enhances usability and convenience.

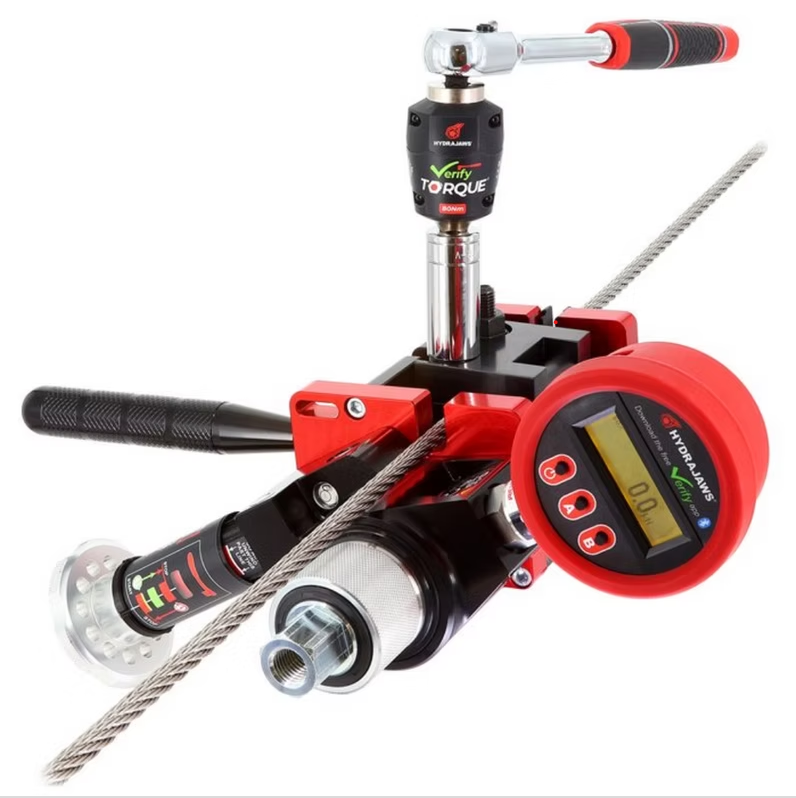

Manufactured to exact high standards, the Hydrajaws Safety Lifeline Cable Tester frame clamps directly to the 8mm wire rope. It comes with all the accessories to test existing installations including those with long terminating assemblies without any additional parts needed.
Key Features
- M35+ rechargeable digital tester with dual-scale display (0–35 kN)
- Compatible with the latest Hydrajaws App
- Single-hinge clamp arrangement with swing-bolt design
- Cable test frame with extension bars
- Durable protective carry case
Specifications
- Pull-out Load Range: 0–35 kN (7,868 lbf)
- Maximum Torque at 35 kN: 9.8 Nm (7.2 lb-ft)
- Case Dimensions: 571 x 382 x 160 mm (22.48 x 15.04 x 6.30 in)
- Case Weight: 17 kg (37.5 lbs)
- Warranty: 12 Months
- Part Number (Metric): 030-007
- Part Number (Imperial): 030-008
Kit Contents
- Hydrajaws M35+ Tester with Standard Bridge
- Hydrajaws 80 Nm Verify Torque Wrench
- 24 mm Ratchet Spanner
- Ratchet Wrench with 17 mm Socket
- 14 mm Spanner
- Ball Drivers
- 8 mm Barrel Clamp
- 12 mm Slotted Adaptor
- Extension Collar Insert
- Additional Extension Rods
- 8 mm Knurled Adaptor (10 mm and 12 mm adaptors available separately)
- 6 mm Hex Key
- Mini Clevis Adaptor
- Bolt Test Adaptor
- Slotted and Threaded Adaptors
- Tool Lanyards
Specifications
- Case Dimensions: 571 x 382 x 160 mm (22.48 x 15.04 x 6.30")
- Pull-Out Load Range: 0–35 kN (7,868 lbf)
- Maximum Torque at 35 kN: 9.8 Nm (7.2 lb-ft)
- Case Weight: 17 kg (37.5 lbs)
- Warranty: 12 Months
- Part Number (Metric): 030-007
- Part Number (Imperial): 030-008
