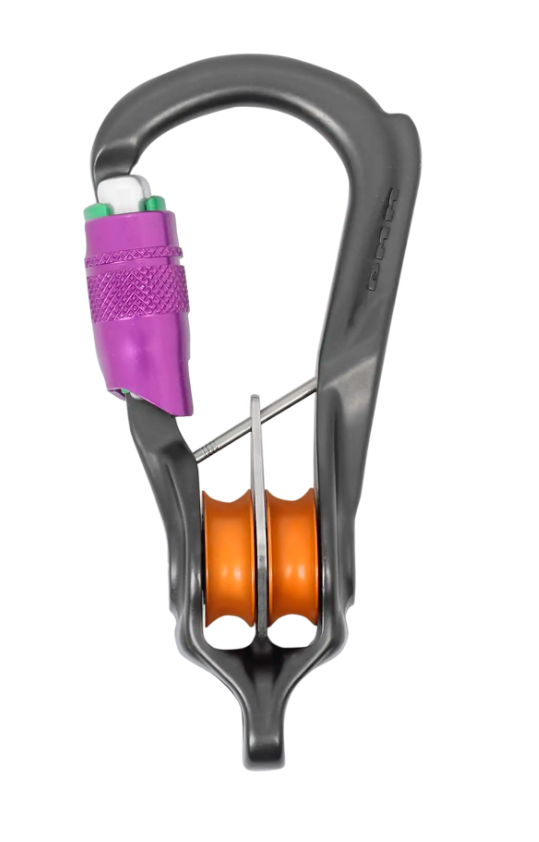

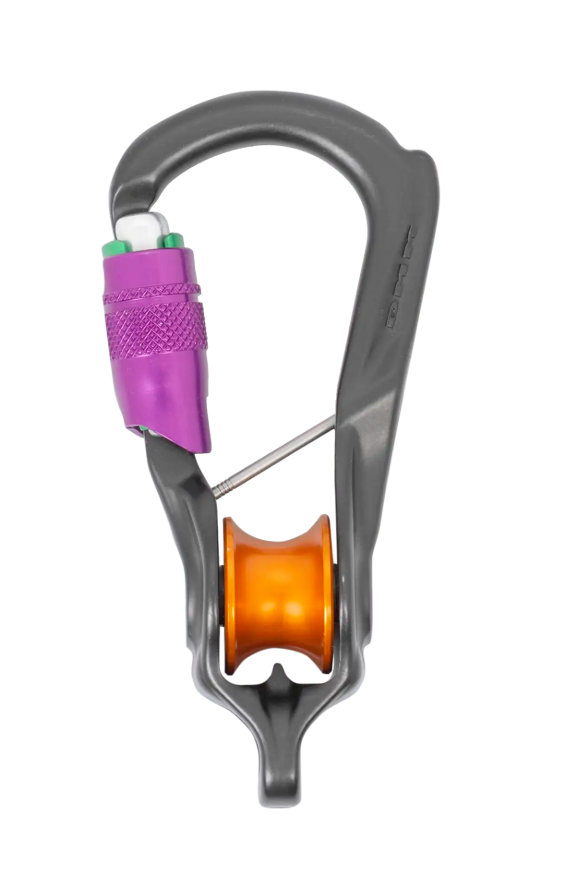

DMM Revolver Rig Connector

A connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.

The uniquely profiled spine and captive bar aid in maintaining correct orientation.

The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.

Features

• Large sheave tread diameter for large bend radius
• High efficiency roller bearings
• Full strength becket accepts most connectors or direct textile connection
• Removable captive bar
• Keylock nose for snag free operation
• Uniquely profiled spine to aid correct orientation

Locking gate types

Screwgate

Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.

Kwiklock

Auto-locking gate requiring two distinct actions to open.

Locksafe

Auto-locking gate requiring three distinct actions to open.

Durolock

Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).

Kwiklock ANSI

Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Locksafe ANSI

Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
