Ronin Lift Power Ascender and Upgrade Kits

Category Battery Powered Rope Ascender

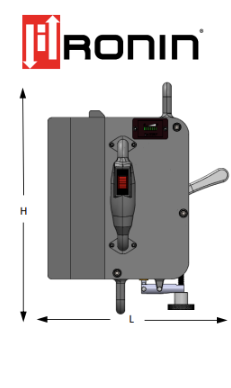

Length (L) 11.35 inches
Width (W) 15.39 inches
Height (H) 13.35 inches
Weight Approximately 24 lbs. (11 Kg)
Construction Aluminum, Stainless Steel and Bronze
Finish Powder Coat Black
Operating
Temperature Range -4 ºF – 120 ºF (-20°C to +49°C)
Ingress Protection (IP) IP54
Battery Type 28 VDC Lithium Ion Rechargeable
Battery Life Ascent 350 ft.(107m) of rope @ 400lbs.
700 ft.(213m) of rope @ 200lbs.
Battery Re-Charge
Time Approximately 2 hours
Rope Type
10 – 13 mm Aramid or Kernmantle Sheath
Static Line Rope
Rope Loading End Feed
Ascent Speed Variable (0.5 – 1.5 ft./per second)
Descent Method Gravity Feed with manual brake
Descent Speed 3.5 ft./sec. max @ 400 lbs. (181Kg)
Secondary Safety Secondary Lock Out Feature (Hands Free)
Max Working Load 400 lbs. (181 Kg)
Product Certifications CE Certified & ANSI Certified
Reverse Functionality
For Angled Ascents, winching applications,
removing rope from the system.
Features
• Lightweight & portable
• Rugged and durable construction
• 400 lbs. (181Kg) continuous lifting capacity
• Thumb wheel trigger for variable speed control
• Automatic braking feature for hands free work
• Hot swappable battery pack for continuous use
• Integrates with existing climbing technology
• CE and ANSI Certified
• Can act as both a winch and ascender
Applications
• Gear Hauling / Winching
• Rope Ascending
• Oil & Gas
• Search & Rescue
• Confined Space Extraction
• Tower / Power Electric
• Concert / Stage Rigging
• Arborist
• Wind Turbine & Many More
